GATE CNC Aluminium Gearbox EON V2 ( 8 mm) - Silver

GATE CNC Aluminium Gearbox EON V2 - Silver View larger
We are sorry, but the sale has already ended
Previous Next

CNC Gearbox Shell EON V2 (8 mm) by GATE in silver finish.

Made from aircraft-grade 7075 T6 aluminum with tensile strength of 570 MPa.

Lifetime warranty for GATE ETU users.

Inspection windows for AOE tuning, motor height, and pre-cocking check.

Quick spring change (QSC) compatible with Specna Arms ESA2 spring guide.

Designed for use with TITAN V2 and ASTER II ETU units.

The sale is over Show alternatives

EON-GB2-S

: GATE

Product variants

Další varianty

  • Grey
    Out stock

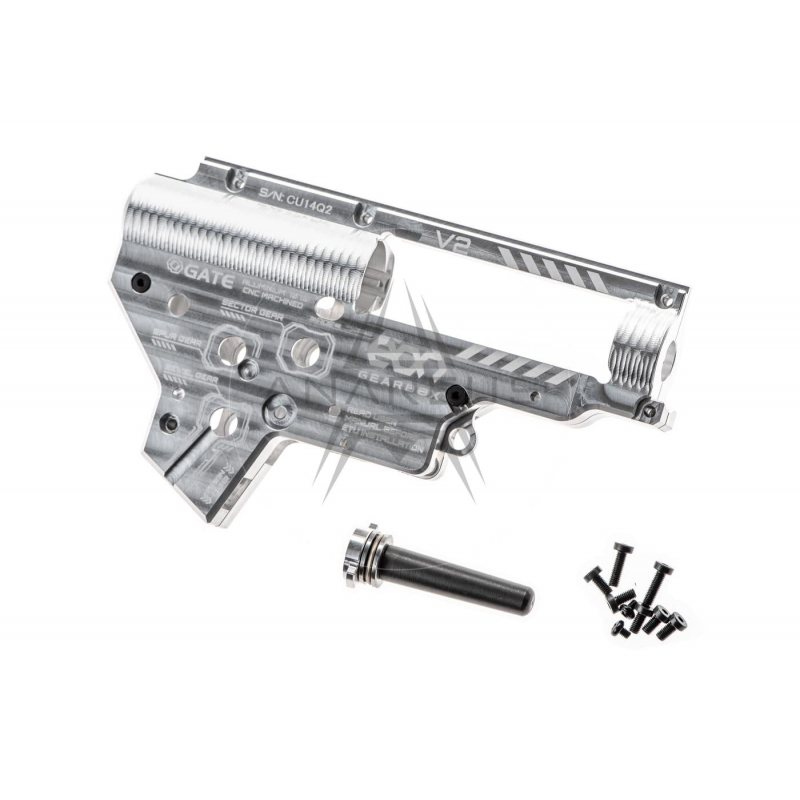

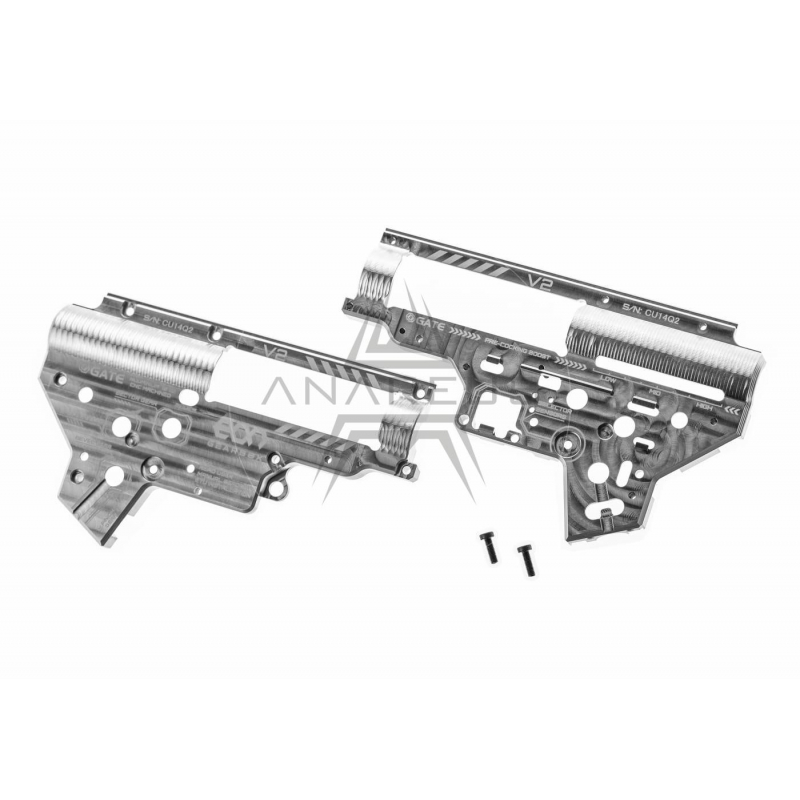

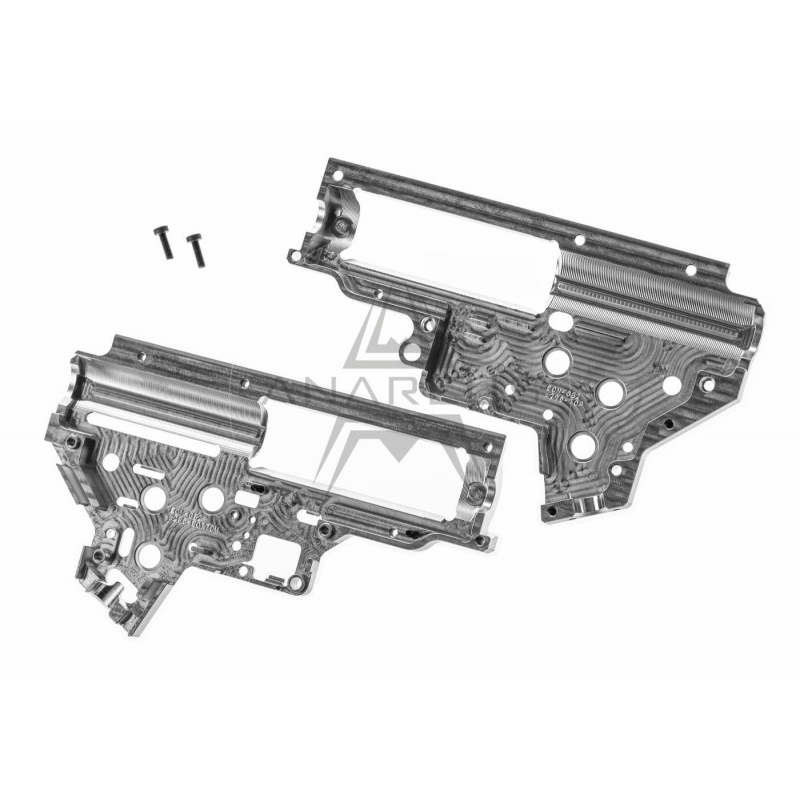

CNC Aluminum Gearbox Shell EON V2 by GATE

The CNC gearbox shell EON by GATE is a result of premium engineering. It is fully machined from aircraft-grade 7075 T6 aluminum, offering exceptional durability and longevity for any upgrade setup. A lifetime warranty is provided when used with GATE ETU units like TITAN or ASTER, ensuring peace of mind even for the most demanding builds. This shell is CNC-machined with inspection windows for AOE adjustment, pre-cocking, or motor height calibration. These features allow for perfect setup without repeated disassembly. It also features quick spring change (QSC) and is compatible with Specna Arms ESA2. Can be installed in most M4 / AR15 receivers, including VFC models with dual selectors.

Key Features

  • Aircraft-grade 7075 T6 aluminum:
    570 MPa tensile strength for maximum durability.

  • Lifetime warranty:
    Applies when used with GATE ETUs (ASTER, TITAN).

  • Inspection windows:
    Easy tuning of AOE, pre-cocking, and motor height.

  • Quick spring change:
    Accessible with hex or flat screwdriver.

  • Compatibility:
    With VFC selectors, standard V2 internals, and ESA2 system.

  • Wiring protection:
    Minimized risk of damage from bevel gear.

  • Reinforced cylinder radius:
    Reduces stress during cycle and extends gearbox life.

  • Compatible bearings:
    8 mm (not included).

Technical Specifications

  • Material: 7075 T6 aircraft-grade aluminum
  • Manufacturing: CNC machining
  • Tensile strength: 570 MPa
  • Compatibility: V2 gearbox airsoft guns
  • Bearings: 8 mm (not included)
  • Quick spring change: Yes (QSC system / ESA2 compatible)
  • Color: Silver (anodized)

Package Contents

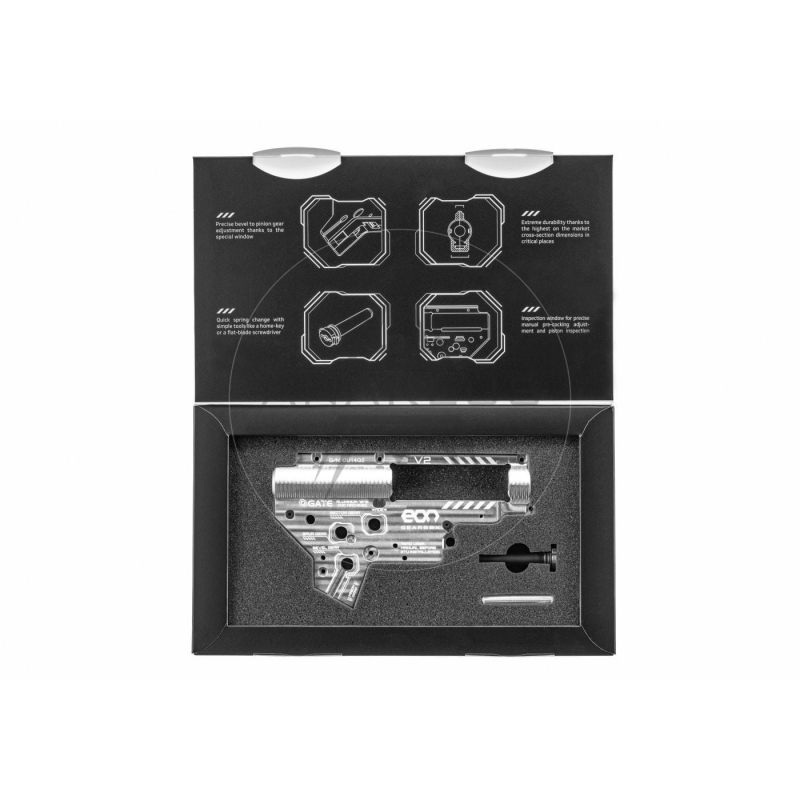

  • CNC Gearbox Shell EON V2
  • QSC spring guide
  • Screw set
  • Firmware upgrade code for TITAN / ASTER units

Warning

  • Do not use cylinder heads with rubber front bumpers (e.g., MAXX, FPS) – may damage the gearbox posts.
  • Rubber bumpers can be removed or replaced with shims under the cylinder head.
  • Recommended are GATE or EPeS cylinder head.
Color Silver
Body/receiver material Metal
Gearbox version V2 - QSC
Bearings (mm) 8 (mm)
Spring guide Metal
